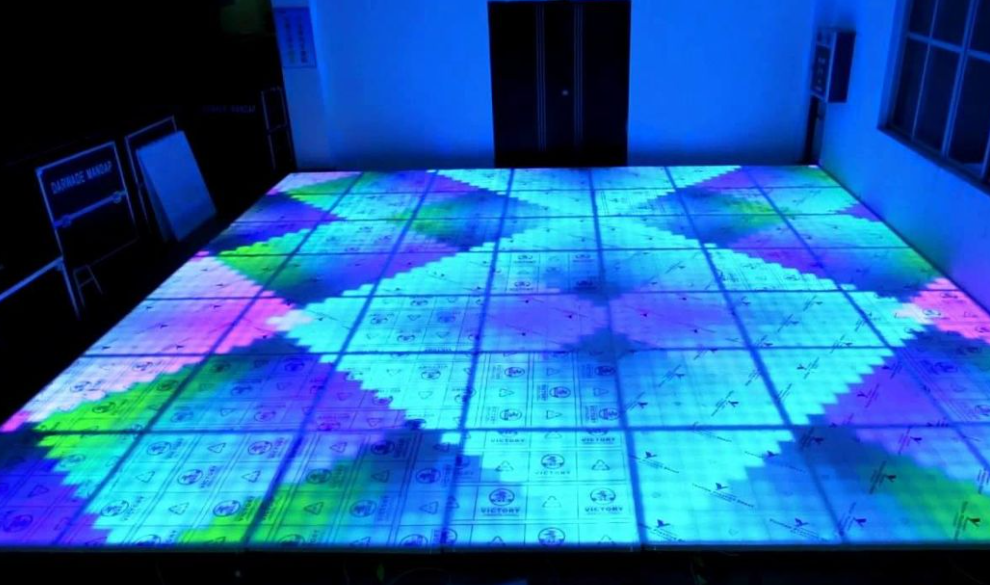

LED Display Aluminum P3.91mm Interactive LED Floor Tile

Product Categories
Shenzhen Jucaiyuan OptoelectronicTechnology Co.,Ltd
Contact Now

LED Display Aluminum P3.91mm Interactive LED Floor Tile

Brand Name : jucaiyuan

Model Number : P6.25

Certification : CE,ROHS

Place of Origin : shenzhen, China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000sq.m/Month

Delivery Time : 20 days after receiving the deposit

Packaging Details : flight case, wooden case, carton, it is up to you

Product Name : Floor Led Display

Life Span : 100000hours

Panel Dimensions (mm) : 500 × 1000

Single Cabinet Weight : 24 Kg/panel

Application : Play Video, Live Events Led Display

Cabinet Material : Die-casting Alumium

Contact Now

LED floor tile Display SMD2727 P3.91 P4.81 P5.2 P6.25 Aluminum Panel Material

Description

  • Scree keeps ranking top 10 in recent 5 years in Shenzhen LED industry.
  • We own 2 plants with production area 38,000 square meters, 100 SMT machines keep running day and night.
  • Number of employees is stable at around 250, and the age is between 20-50.
  • Great production capacity. Monthly 10,000 square meters LED displays, weekly30,000 pcs LED modules.
  • Short lead time. Module delievery time 5-7 days, LED display delievery time 10-20 days.
  • We have passed CCC/CE/FCC/BIS/RoHS/ISO9001 certification. As well, our products have won prizes and praises from our clients domestic and overseas.
  • Free technical consult and support, customized design support, quick response within 24 hours.
  • The company has planned to expand production scale in the next 2 years.

Floor LED Display Feature:

  • Above 16bit grayscale processing, brightness up to 3500cd/m2
  • Using high strength wear - resistant non - slip fabric, can be directly trample
  • Dance function
  • Different from other LED display to play the text and video images, people can dance on the dance floor led panel, with music and video, people can get better audiovisual enjoyment.
  • Fast and flexible installation: no direct installation or rail installation can be used.

Application:

Widely used in stage fixed installation,singing and dancing event evenings,various conferences,exhibitions,stadiums,theaters,auditoriums,lecture halls,multi-purpose halls,conference rooms,interpretation halls,di bars,night clubs,high-end entertainment discos,TV station Spring Festival Evening,auto show,important cultural events in various provinces and cities.

Screen Parameters
1 Pixel density 2650dots/㎡
2 Screen Resolution according to screen size
3 Cabinet Qty. according to screen size
4 Brightness ≥2000 CD/sqm
5 Refresh rate ≥1920Hz/s
6 Scanning Mode 1/10 scan
7 Viewing Angle H:140°;V:140°
8 Viewing Distance ≥6.25m
9 Gray Level 16 Bit
10 Power Input AC110~240V
11 Power Comsuption Max: 400W/㎡ Average:100W/㎡
12 MTBF--hours >10,000 hours
13 Life--hours ≥100,000 hours
14 IP Grade IP65/IP54
15 Operating Temperature -35℃~ 65℃
16 Storage Humidity 10℃~90℃RH
17 Control Syetem Colorlight/Nova/Linsn
18 Operating System Windows98/me/2000 /NT/XP
19 Power Supply 5V40A 200W/5V60A 300W
20 Maintance Access Back service/Front service
21 Control mode computer /USB/WIFI/4G

LED Display Aluminum P3.91mm Interactive LED Floor Tile

LED Display Aluminum P3.91mm Interactive LED Floor Tile
